Asteroid Adventure Cargo Bike

Using 26-inch mountain bike (MTB) wheels on a hub steering cargo bike offers several benefits. The larger wheels provide better performance on rougher terrains, offering a smoother ride and higher load capacity. They also improve comfort and increase ground clearance for navigating obstacles. This combination enhances the cargo bike's stability and versatility for transporting goods, making it ideal for families wanting a sports utility vehicle in the weekend and a solid multi purpose work horse during the week.

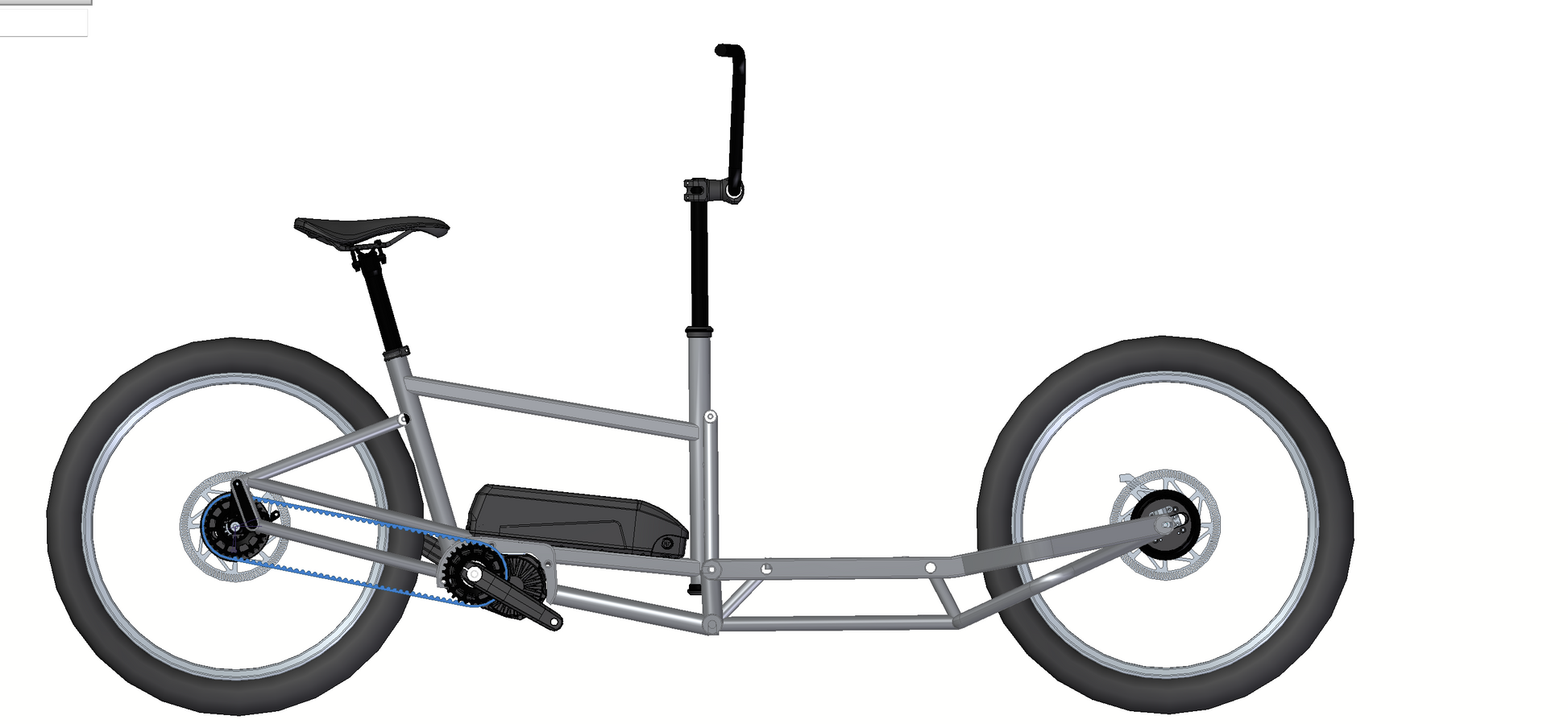

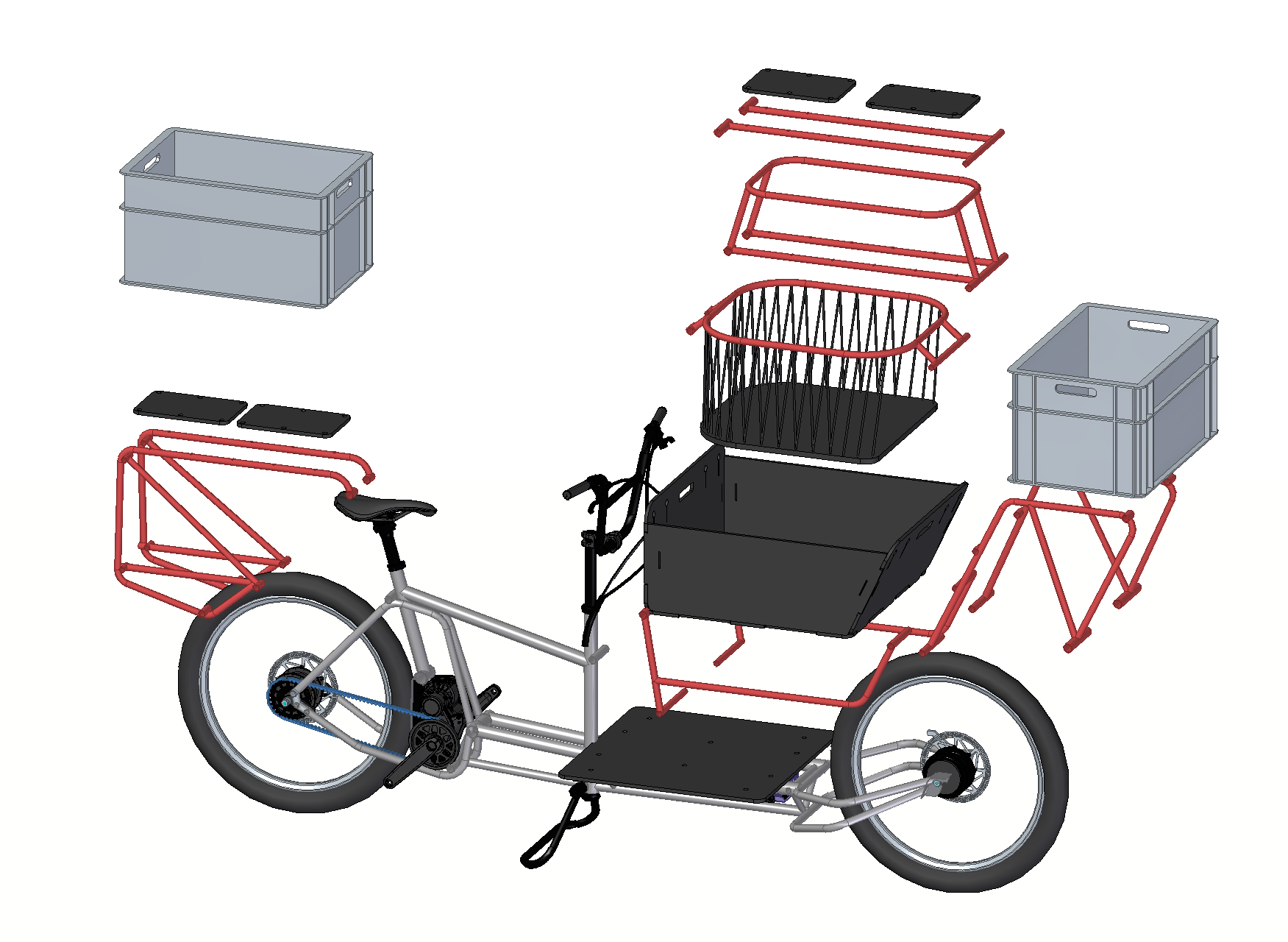

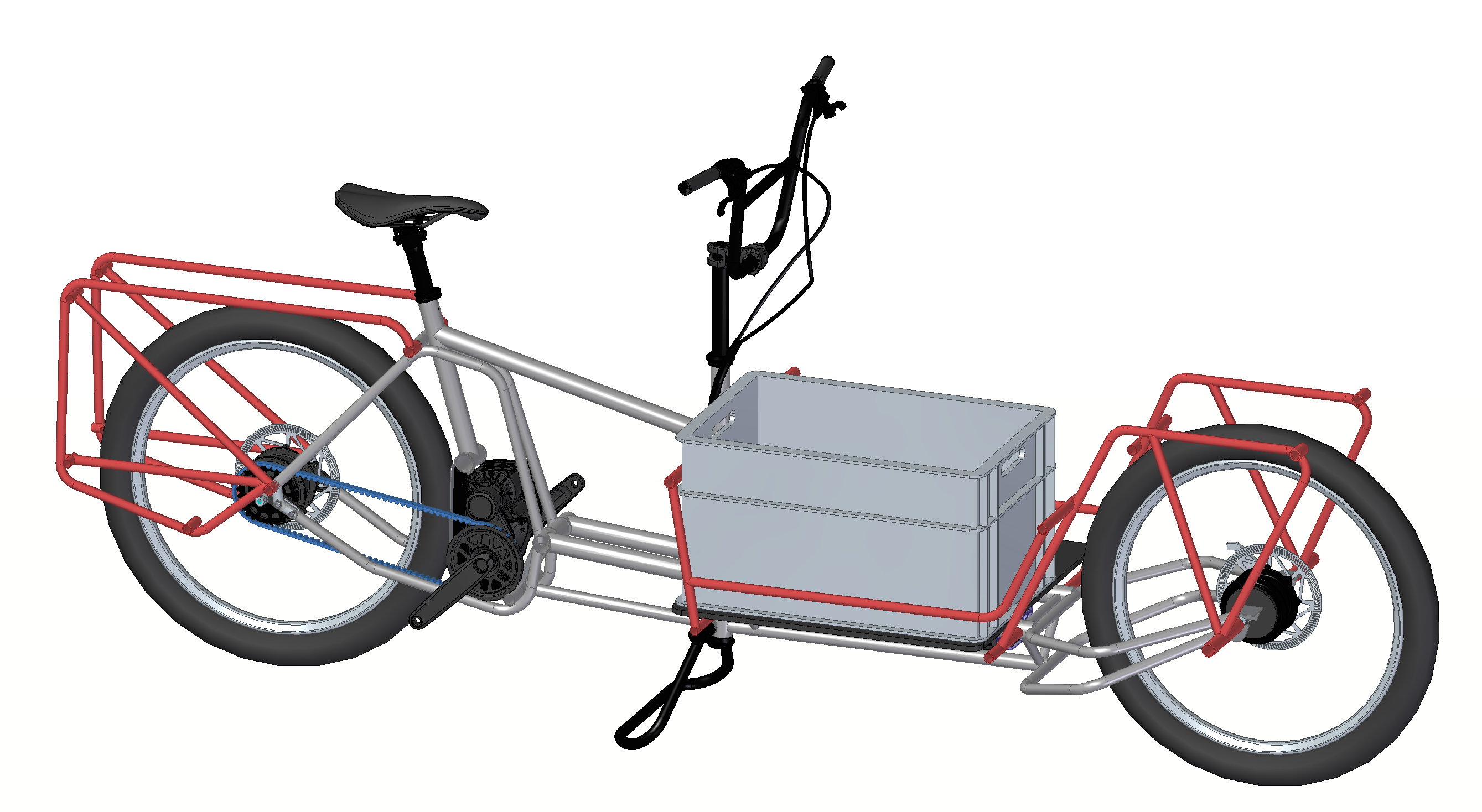

At Asteroid Bicycles HQ we developed a front load e-Cargo Bike with "Hub Steering" and a "Modular" frame structure that separates for storage and transportation. Our front load design shows innovation, resolving storage issues and load safety.

1 5
Motor Component Spec
Battery Options
£6,999.00 GBP
£6,999.00 GBP
Price Sold out
Tax included.

Use the discount code: ASTEROID999

Pay Now to get £999 discount on selected any model for a limited time.

Deliveries start in Q1 Jan 2026**

Need advice on selecting a bike or need technical help?

Open a Live Chat or call 07562 696 804 between 9-4

Email info@asteroid-bicycles.com

Asteroid can provide Payitmonthly finance or use Cycle to work vouchers.

View full details

GENERAL INFORMATION:

Speeds: 9 or 12 direct drive gearbox (no derailleur needed)
Weight: approx 38kg
Development: 9speed = 1.35 - 7.65m 568% with 24.3% gear steps
12speed = 1.35 - 8.09m 600% with 17.7% gear steps
Sizes:

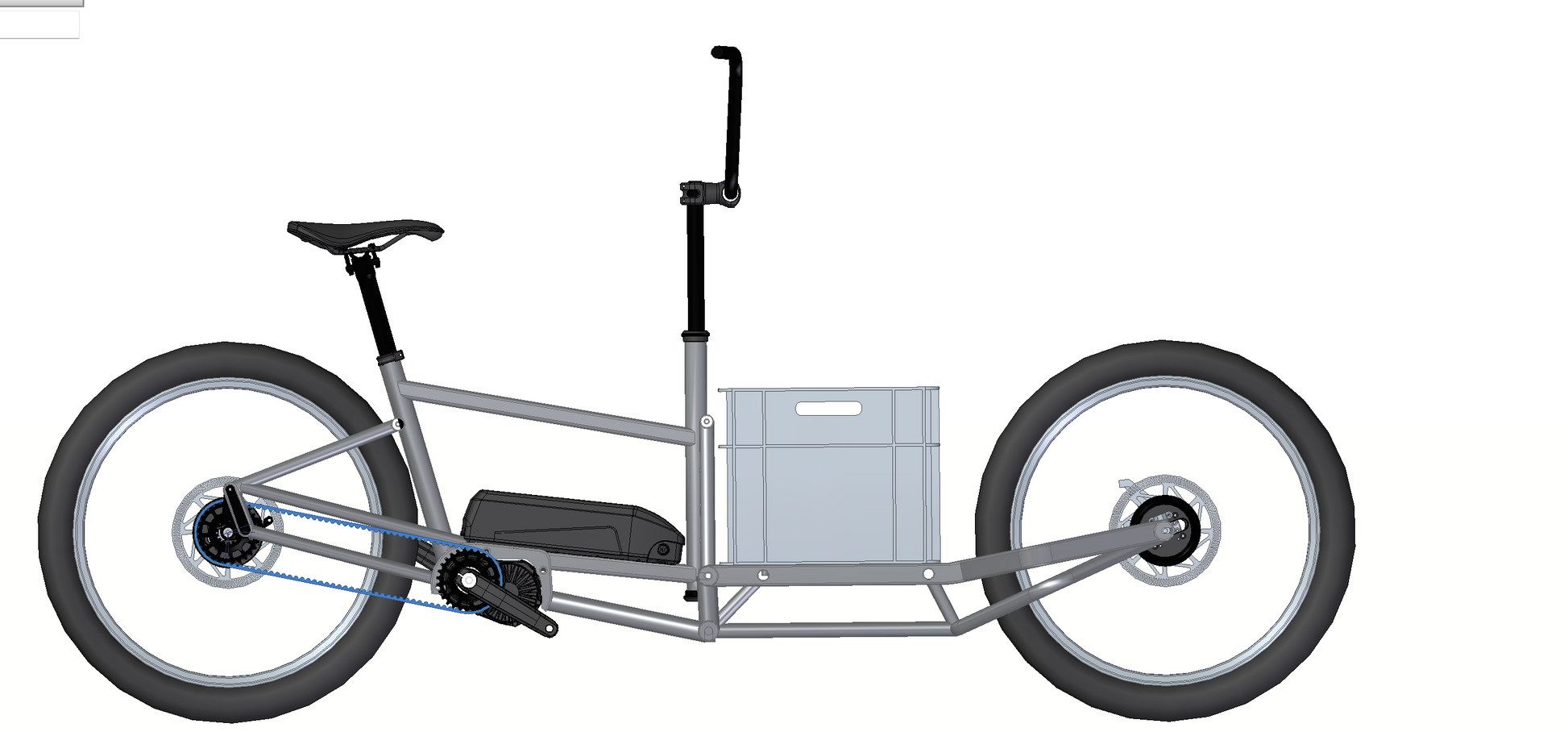

Family with 40cm box = 200 × 45 × 76 cm able to fit in a Ferry for free

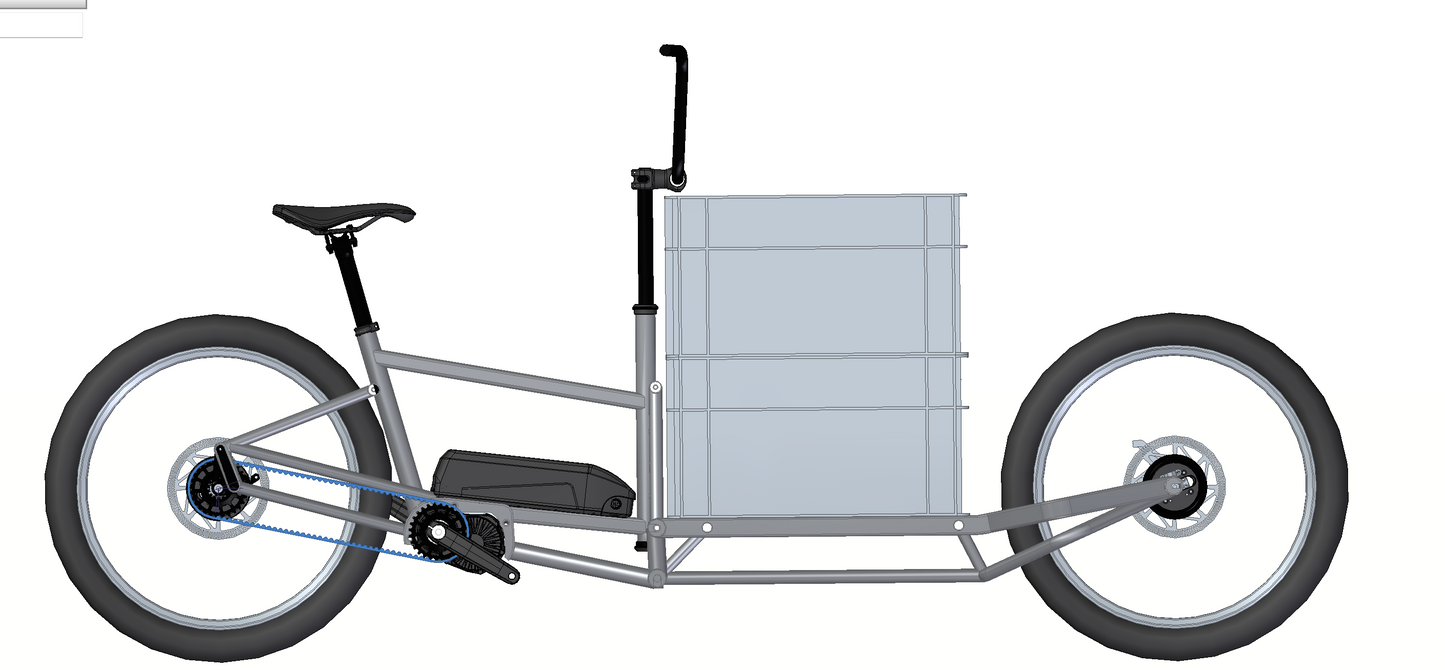

Family with 60cm box = 225 × 45 × 76 cm
Adventure  with 60cm box = 265 × 55 × 76 cm
Frame Sizes: One Size Fits All
Suggested Rider Height: 149 - 200 cm (5ft - 6ft 5inch)
Max Gross Vehicle Weight: 250 kg
Max Load Weight: 250 kg
Max Rider Weight: 150 kg

FRAME SPEC:

  • Asteroid BST45 steel modular split frame design, CE certified
  • Asteroid patent pending offset Hub Steering 42deg tilt
  • 26inch wheels
  • Pinion MGU & FIT battery system
  • Hope Tech Brakes & finishing components
  • Shimano Brakes & generic components

WHEELS & TYRES:

Front Wheel: Asteroid Hub Steer hub with M10 bolts - virtual fork offset hub
Rear Wheel: Hope Pro5 trials 135mm hub with M10 bolts and 108 engagement points
Spokes & Nipples: Sapim Stainless steel & brass nipples
Rims: Hope Fortus 35 Rim
Tyres: Schwalbe Pick-Up, cargo-optimized, Super Defense puncture protection, Reflex

E-MOTOR SPEC:

9 speed Motor: Pinion MGU E1-9 = 568% Assist, 85 Nm Torque, max speed 15mph
12 speed Motor: Pinion MGU E1-12 = 600% Assist, 85 Nm Torque, max speed 15mph
535 Battery: 535wh Range extender, Key Fast Swap, Dual Battery bays
800 Battery: 800wh Tubepack, Key Swap, Dual or Quad Battery bays for up to 4 x 800wh capacity
Display: Pinion connectivity with FIT IOS/Android app
535 Range Guide: 535wh: 22-45 miles
800 Range Guide: 800wh: 42-89 miles
1600 Range Guide: 1600wh: 83-179 miles
Charger: 230V, 4A
Connect Module: FIT Connect Module with GPS/GSM connectivity & anti-theft alarm when subscribed
On-board Charging: USB-C, 5V/2.4A, 12W max

TRANSMISSION:

Shifter: Pinion Smart.shift electronic
Crankset: Pinion 170mm Forged.
Front Sprocket: Gates CDX 39T CNC machined
Rear Sprocket: Gates CDX 30T, precision CNC machined
Bottom Bracket: Pinion MGU integrated
Belt: Gates 113T Carbon Drive CDX belt
Pedals: Plastic with non-slip surface

EXTRAS:

Bell: Crane Brand Japanese ring bell
Chainguard: No need frame design with Gates Belt Drive
Kickstand: Asteroid Mid Stand
Luggage Socket: Combo Mount
Front Light: Monkeylink Super Nova Headlight, Hi/Lo beams, 700 lumens
Rear Light: Monkeylink Super Nova Rear Light, Always on
Fenders: Flex Polypropylene

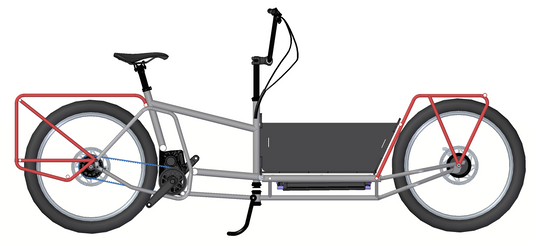

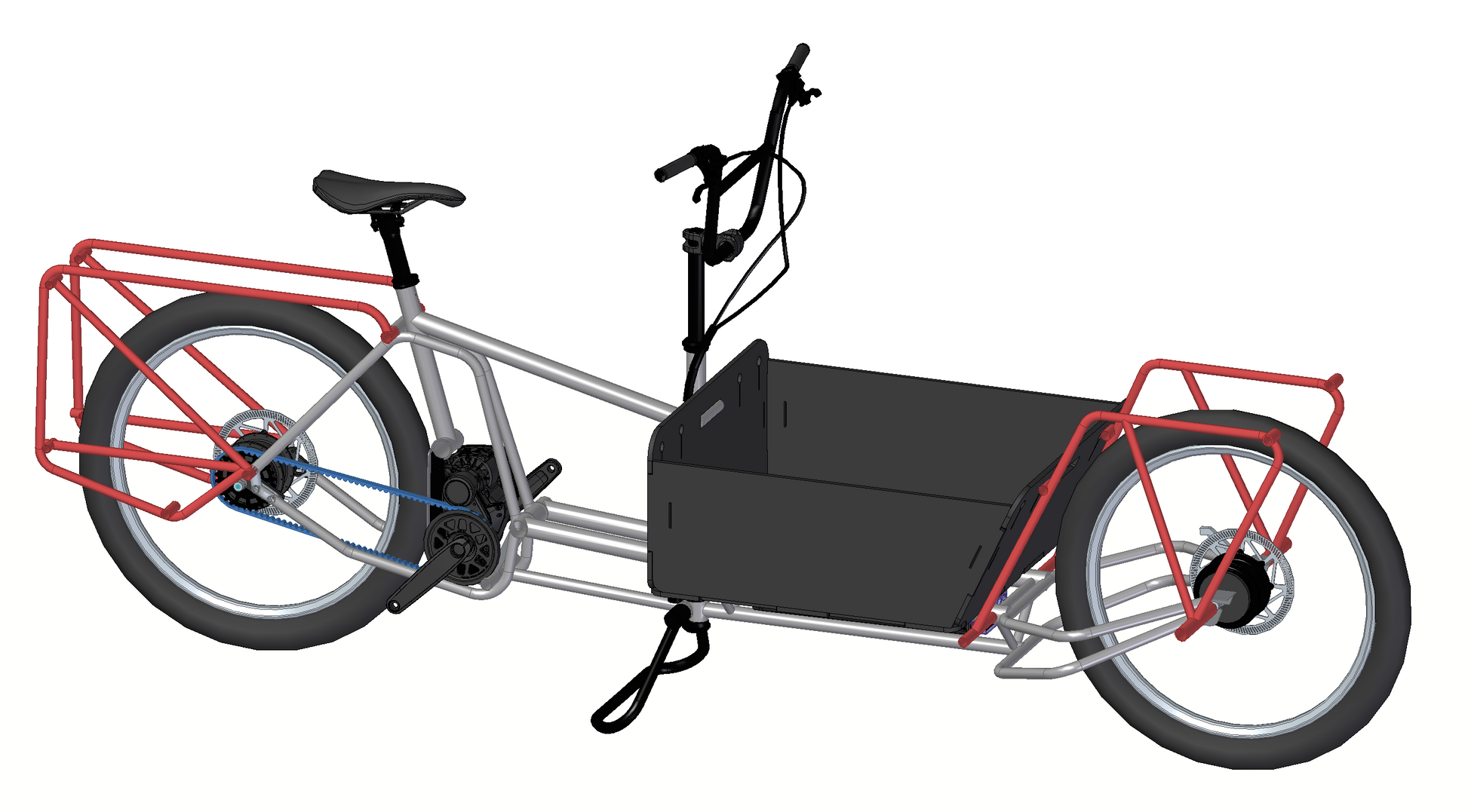

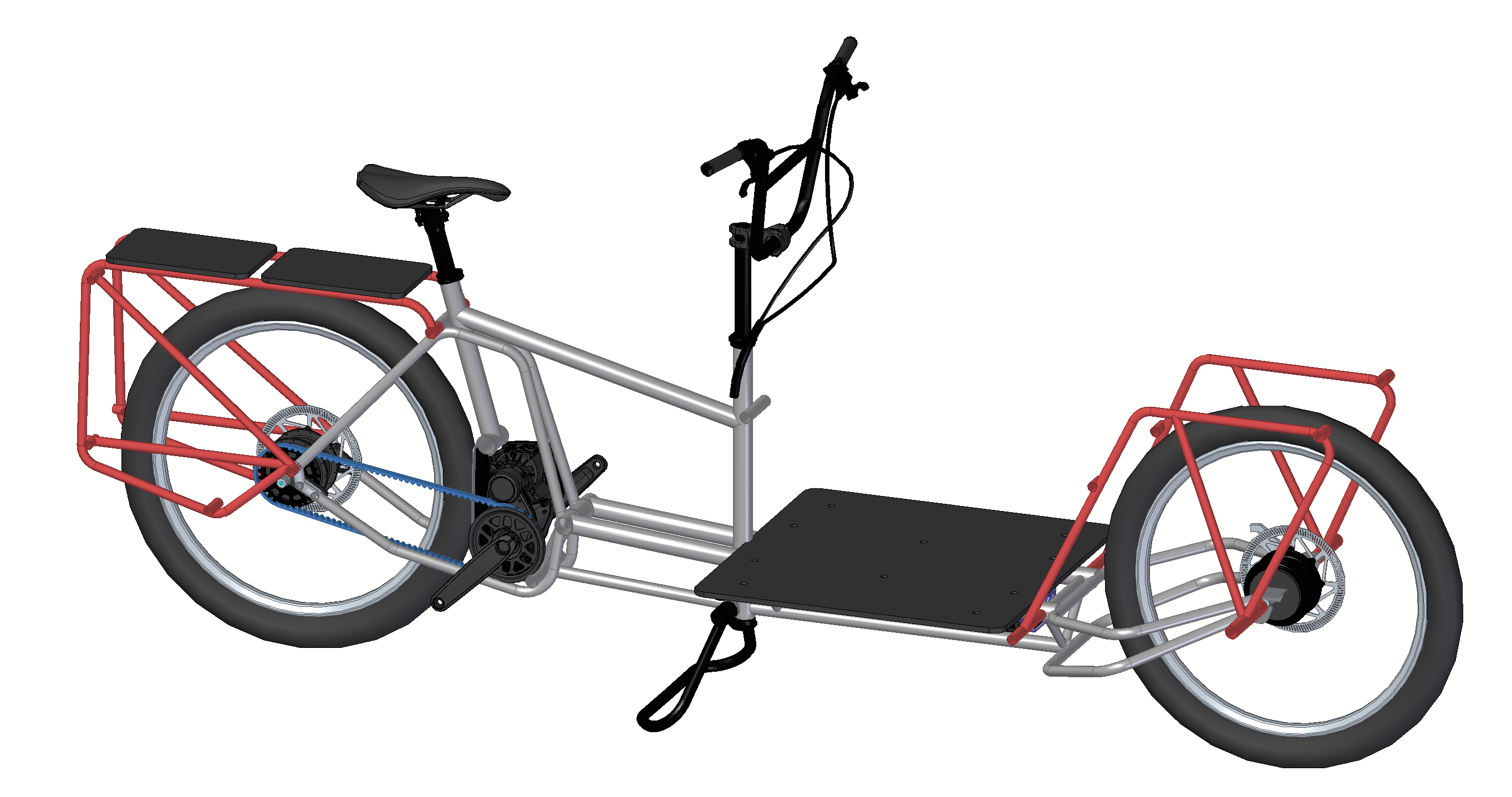

Front Rack: Asteroid T45 Steel 80Kg Capacity
Rear Rack: Asteroid T45 Steel 120Kg Capacity
Frame Lock: ABUS Café Key Lock to match FIT battery
