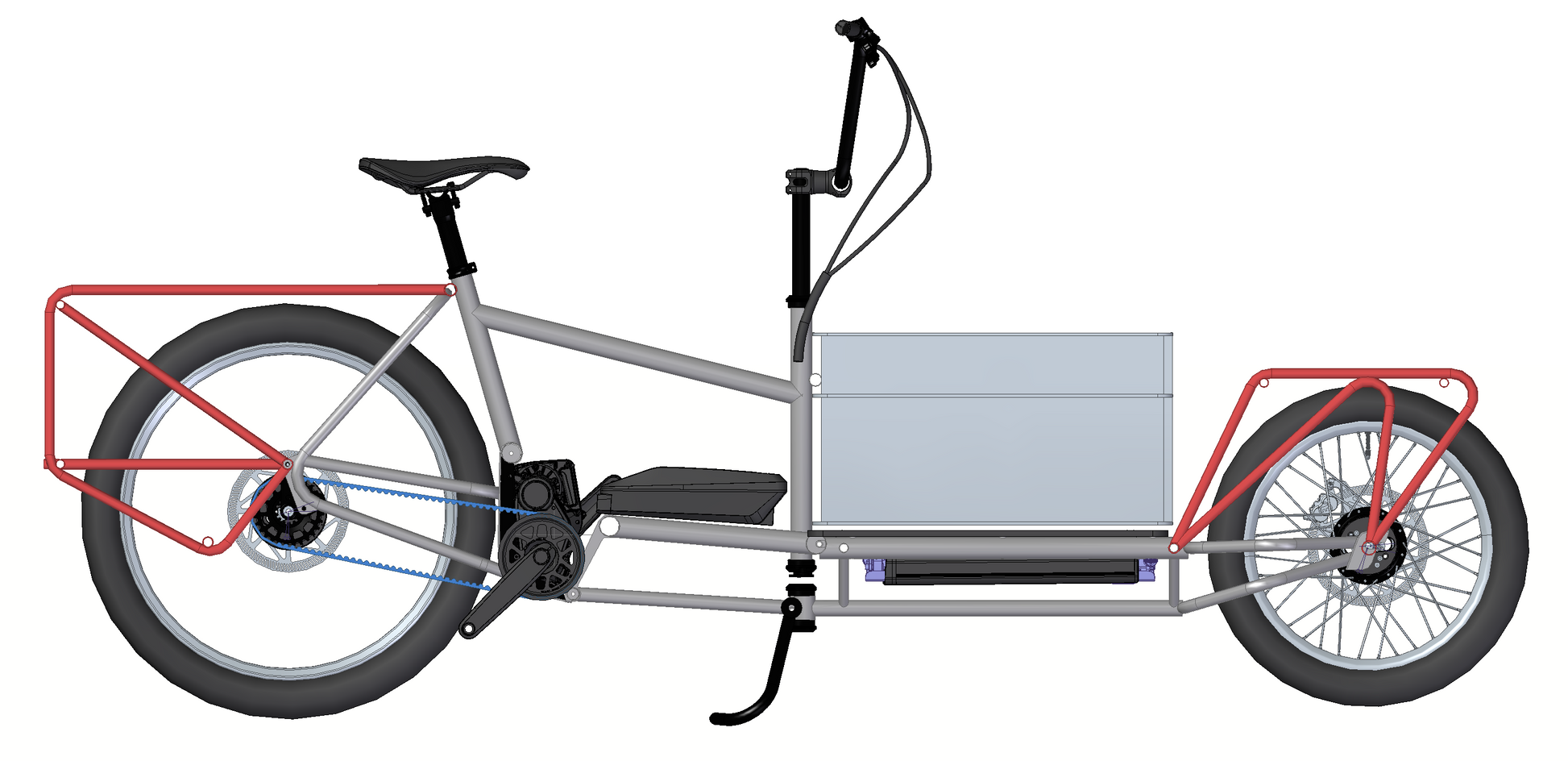

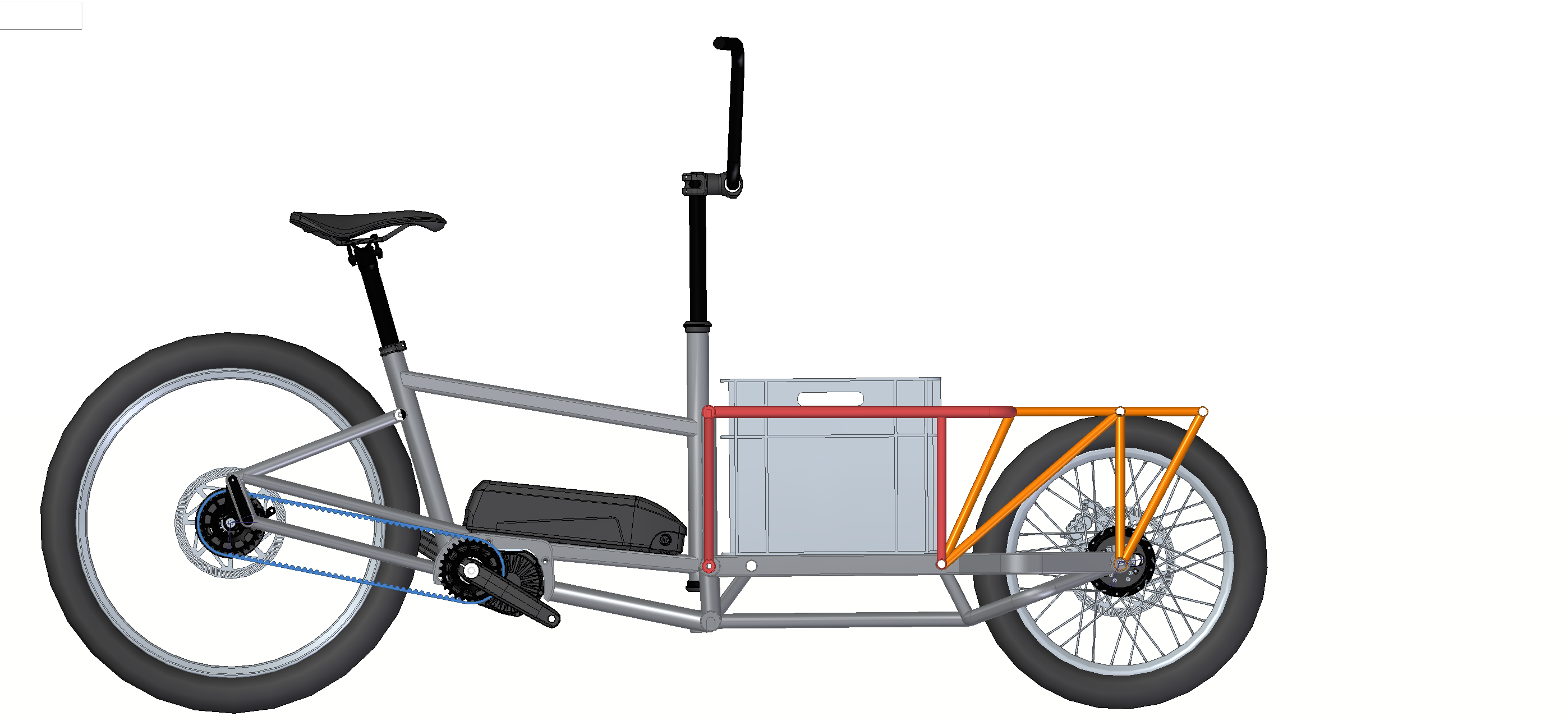

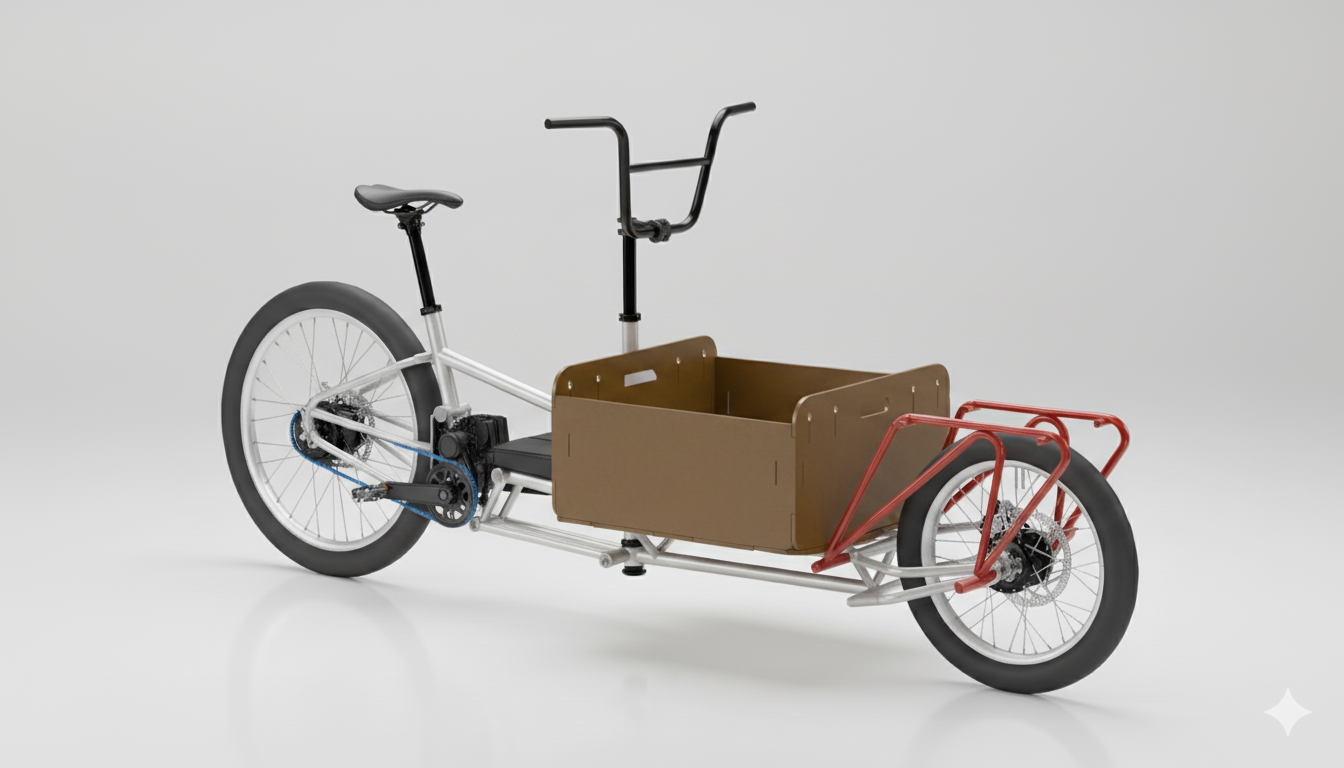

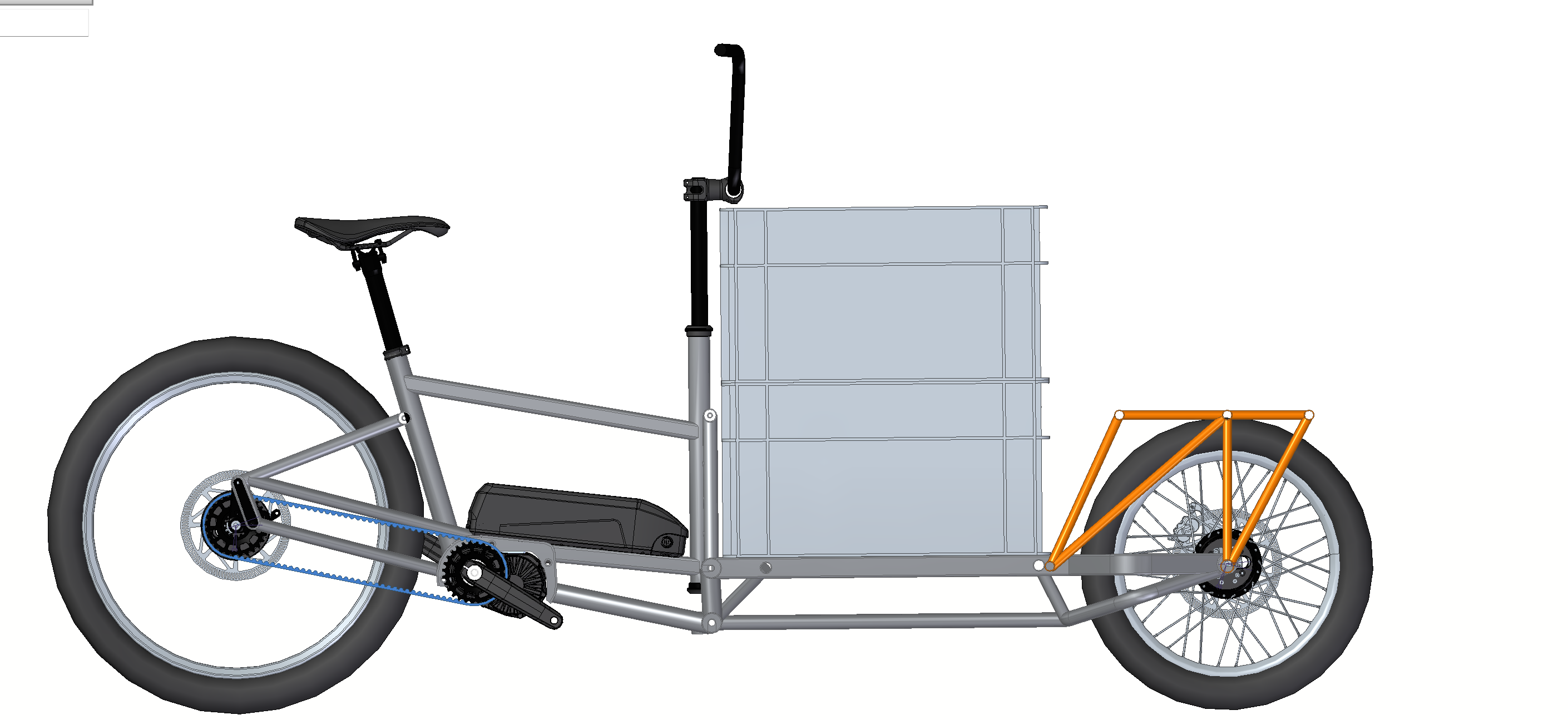

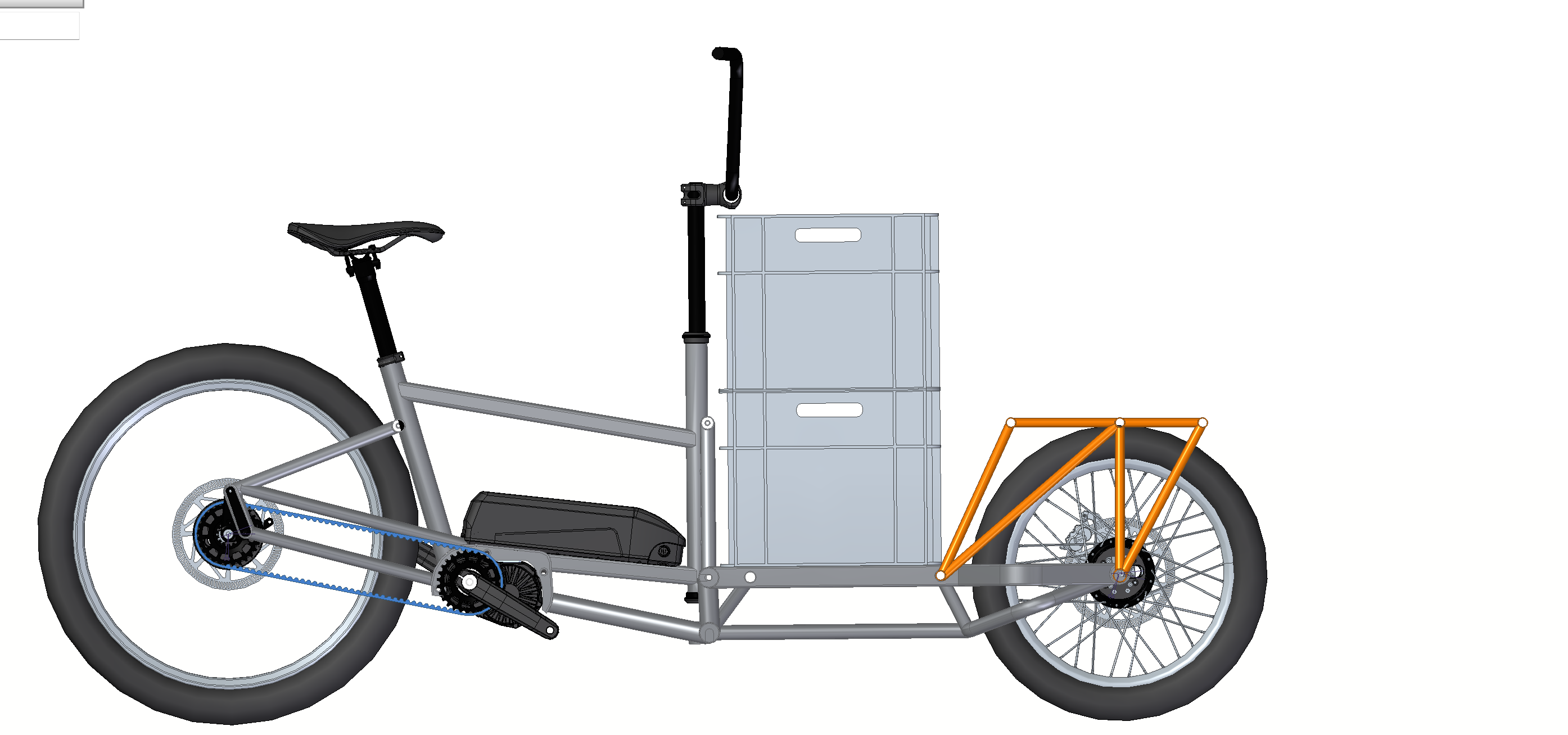

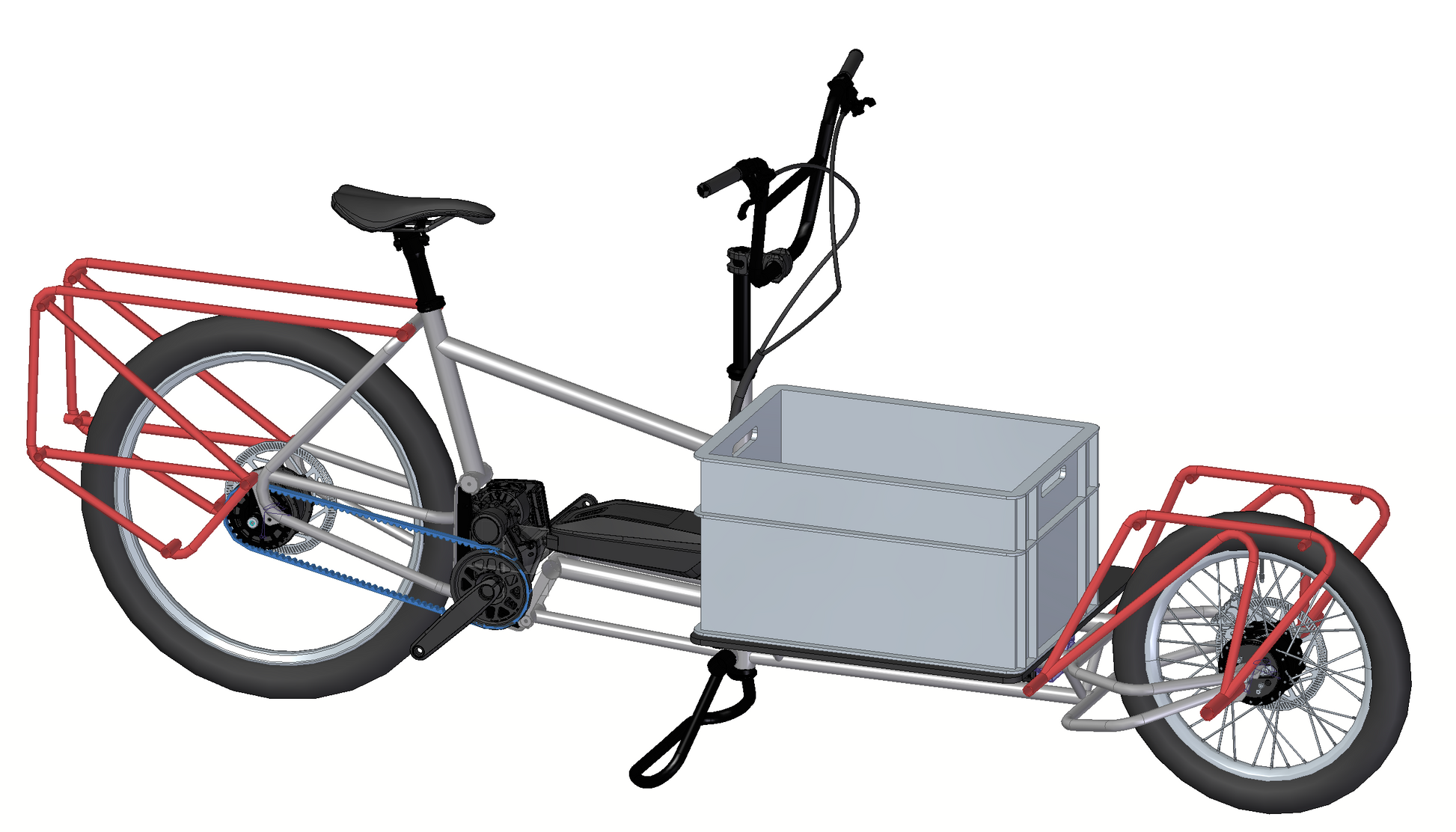

Asteroid Work Cargo Bike

With 20-inch front and 26-inch wheels back. Asteroid Work uses the 20inch front frame platform from the Family model and the rear 26inch wheel frame from the Adventure model. This 20-26 wheel combination is the format that commercial couriers prefer for all day riding comfort.

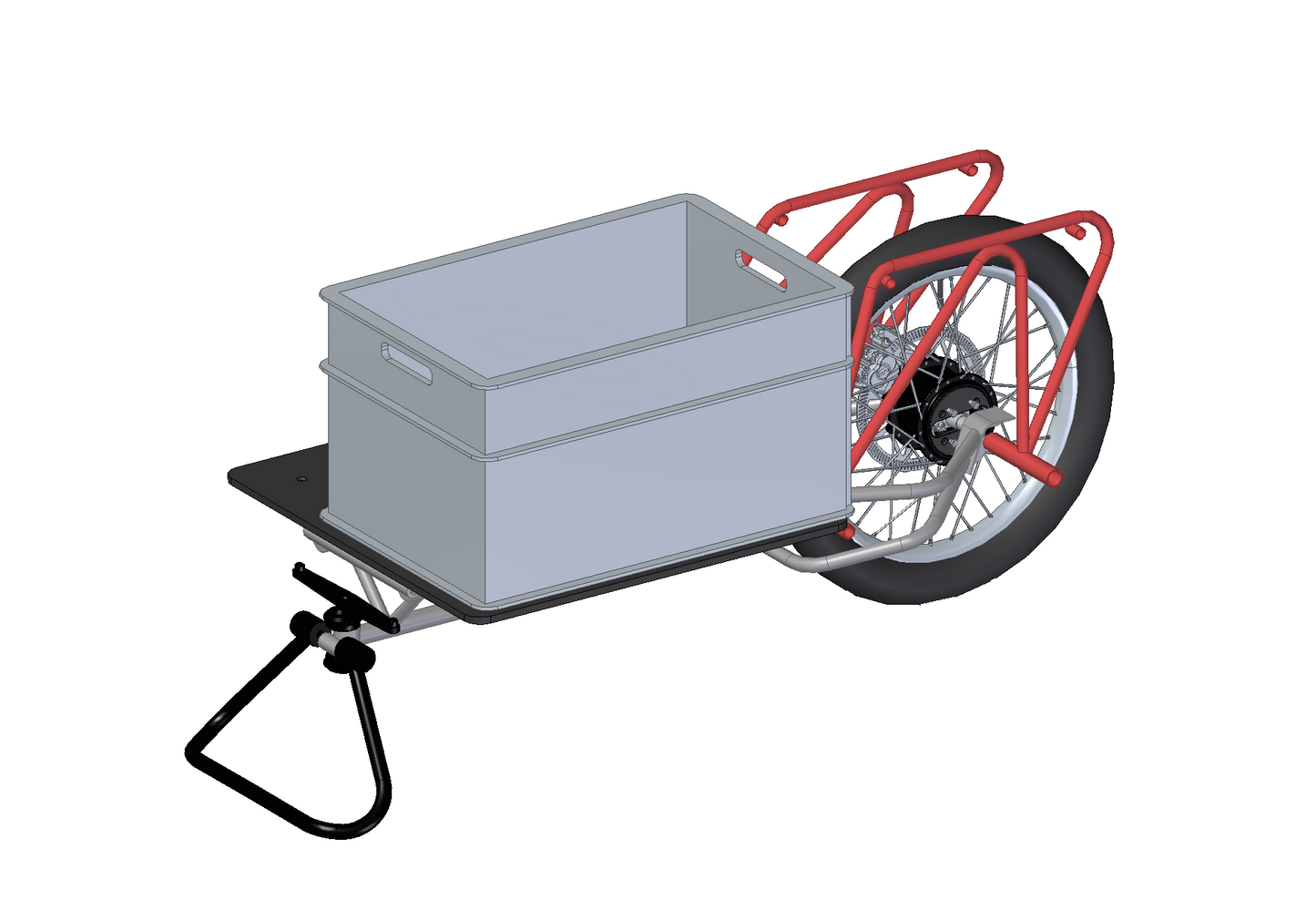

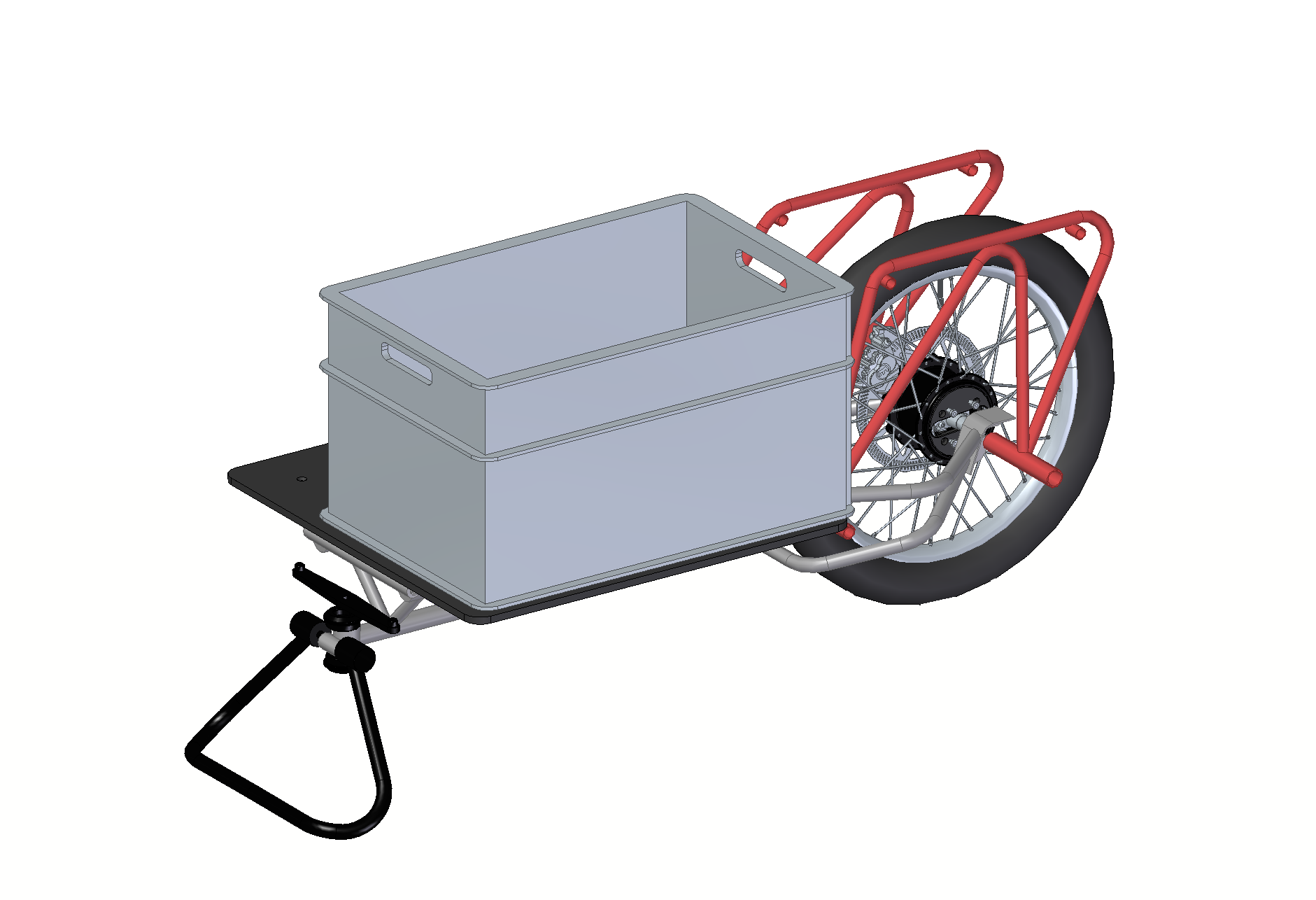

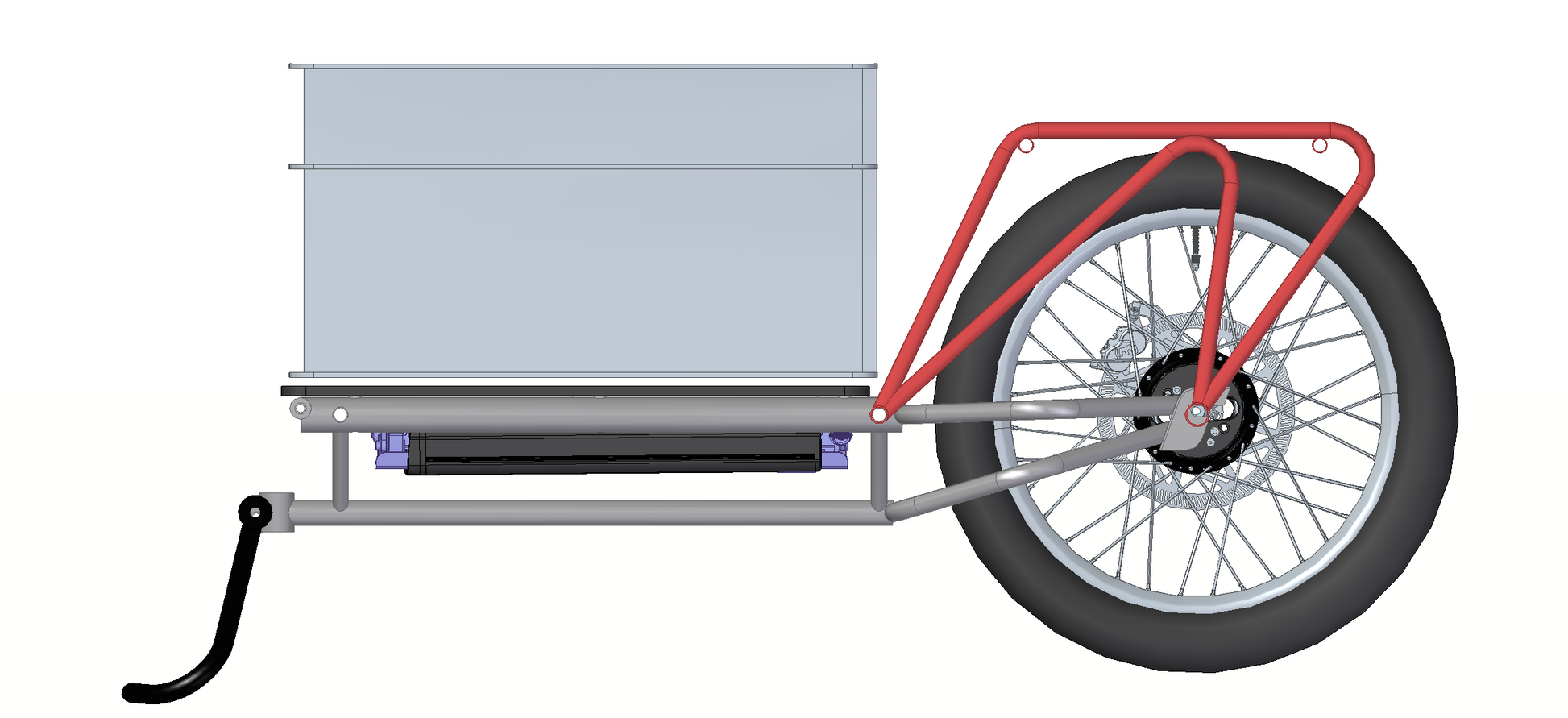

At Asteroid Bicycles HQ we developed a front load e-Cargo Bike with "Hub Steering" and a "Modular" frame structure that separates for storage and transportation. Our front load design shows innovation, resolving storage issues and load safety.

1 8
Frame
Platform Size
Battery Options
£6,999.00 GBP
£0.00 GBP £6,999.00 GBP
Price Sold out
Tax included.

Use the discount code: ASTEROID999

Pay Now to get £999 discount on selected any model for a limited time.

Deliveries start in Q1 Jan 2026**

Need advice on selecting a bike or need technical help?

Open a Live Chat or call 07562 696 804 between 9-4

Email info@asteroid-bicycles.com

Asteroid can provide Payitmonthly finance or use Cycle to work vouchers.

View full details

GENERAL INFORMATION:

Speeds: 9 or 12 direct drive gearbox (no derailleur needed)
Weight: approx 38kg
Development: 9speed = 1.35 - 7.65m 568% with 24.3% gear steps
12speed = 1.35 - 8.09m 600% with 17.7% gear steps
Sizes:
Family with 40cm box = 200 × 45 × 76 cm able to fit in a Ferry for free
Family with 60cm box = 225 × 45 × 76 cm
Adventure  with 60cm box = 265 × 55 × 76 cm
Frame Sizes: One Size Fits All
Suggested Rider Height: 149 - 200 cm (5ft - 6ft 5inch)
Max Gross Vehicle Weight: 250 kg
Max Load Weight: 250 kg
Max Rider Weight: 150 kg

FRAME SPEC:

  • Asteroid BST45 steel modular split frame design, CE certified
  • Asteroid patent pending offset Hub Steering 42deg tilt
  • 26inch wheels
  • Pinion MGU & FIT battery system
  • Hope Tech Brakes & finishing components
  • Shimano Brakes & generic components

WHEELS & TYRES:

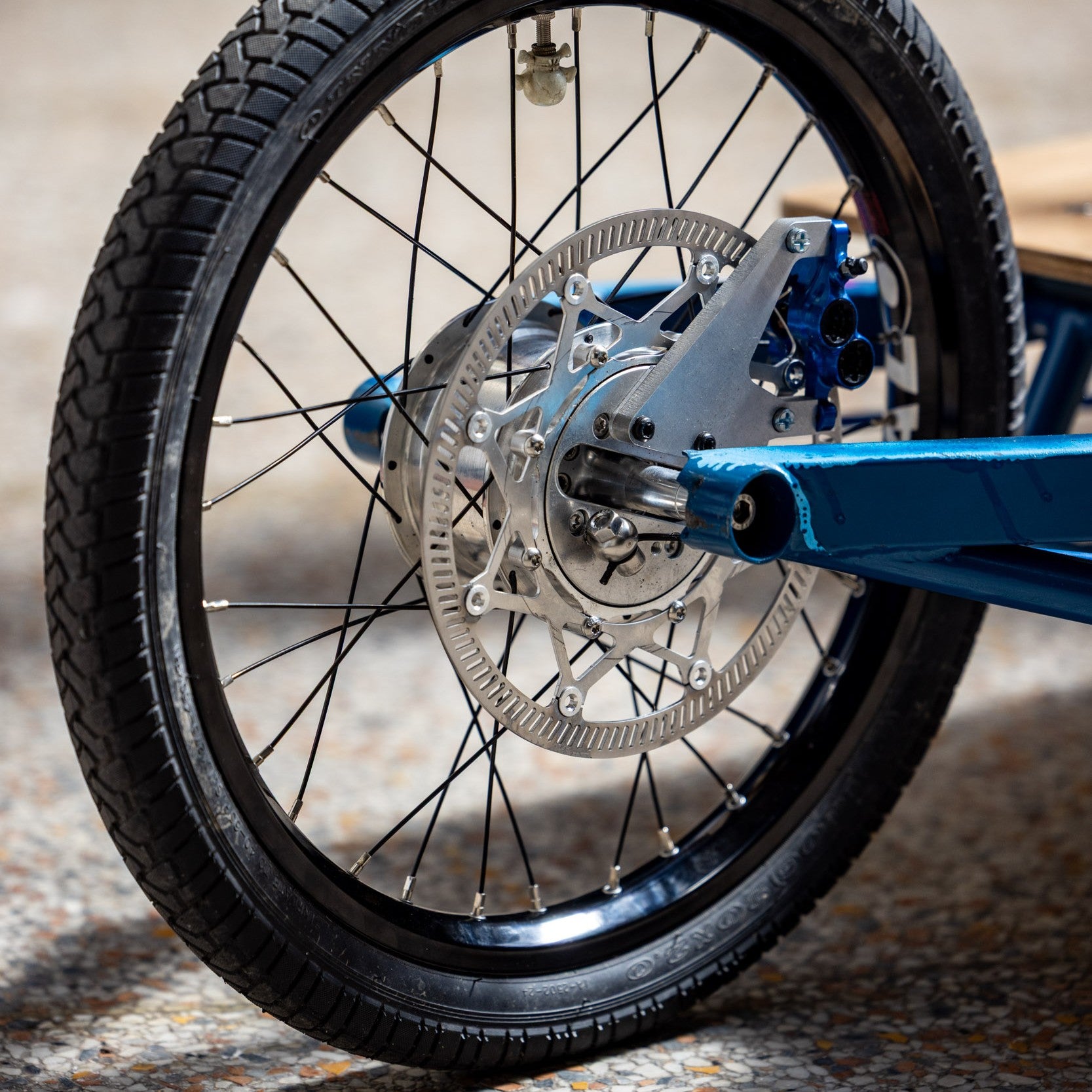

Front Wheel: Asteroid Hub Steer hub with M10 bolts - virtual fork offset hub
Rear Wheel: Hope Pro5 trials 135mm hub with M10 bolts and 108 engagement points
Spokes & Nipples: Sapim Stainless steel & brass nipples
Rims: Hope Fortus 35 Rim
Tyres: Schwalbe Pick-Up, cargo-optimized, Super Defense puncture protection, Reflex

E-MOTOR SPEC:

9 speed Motor: Pinion MGU E1-9 = 568% Assist, 85 Nm Torque, max speed 15mph
12 speed Motor: Pinion MGU E1-12 = 600% Assist, 85 Nm Torque, max speed 15mph
535 Battery: 535wh Range extender, Key Fast Swap, Dual Battery bays
800 Battery: 800wh Tubepack, Key Swap, Dual or Quad Battery bays for up to 4 x 800wh capacity
Display: Pinion connectivity with FIT IOS/Android app
535 Range Guide: 535wh: 22-45 miles
800 Range Guide: 800wh: 42-89 miles
1600 Range Guide: 1600wh: 83-179 miles
Charger: 230V, 4A
Connect Module: FIT Connect Module with GPS/GSM connectivity & anti-theft alarm when subscribed
On-board Charging: USB-C, 5V/2.4A, 12W max

TRANSMISSION:

Shifter: Pinion Smart.shift electronic
Crankset: Pinion 170mm Forged.
Front Sprocket: Gates CDX 39T CNC machined
Rear Sprocket: Gates CDX 30T, precision CNC machined
Bottom Bracket: Pinion MGU integrated
Belt: Gates 113T Carbon Drive CDX belt
Pedals: Plastic with non-slip surface

EXTRAS:

Bell: Crane Brand Japanese ring bell
Chainguard: No need frame design with Gates Belt Drive
Kickstand: Asteroid Mid Stand
Luggage Socket: Combo Mount
Front Light: Monkeylink Super Nova Headlight, Hi/Lo beams, 700 lumens
Rear Light: Monkeylink Super Nova Rear Light, Always on
Fenders: Flex Polypropylene
Front Rack: Asteroid T45 Steel 80Kg Capacity
Rear Rack: Asteroid T45 Steel 120Kg Capacity
Frame Lock: ABUS Café Key Lock to match FIT battery
